# vLLM [vLLM](https://github.com/vllm-project/vllm) is a high-performance and memory-efficient inference engine for large language models. It uses a novel GPU KV cache management strategy to serve transformer-based models at scale, supporting multiple GPUs (including NVIDIA and AMD) with ease. vLLM enables fast decoding and efficient memory utilization, making it suitable for production-level deployments of large LLMs. #### Key Features * **High Throughput Inference**: Novel GPU KV caching enables faster token generation compared to traditional implementations. * **Multi-GPU Support**: Scales seamlessly to multiple GPUs, including AMD (MI200s, MI300s) and NVIDIA (V100/H100/A100) resource pools. * **Easy Model Downloading**: Built-in integration with Hugging Face model repositories. * **Flexible Configuration**: Control precision (`--dtype`), context window size, parallelism (`tensor-parallel-size`, `pipeline-parallel-size`), etc. * **Lightweight & Extensible**: Minimal overhead for deployment and easy to integrate with existing MLOps or monitoring solutions. #### Installation and Deployment on Apolo You can deploy vLLM on the Apolo platform using the **`vLLM`** app. Apolo automates resource allocation, persistent storage, ingress, GPU detection, and environment variable injection, so you can focus on model configuration. **Highlights of the Apolo Installation Flow**: 1. **Resource Allocation**: Choose an Apolo preset (e.g. `gpu-xlarge`, `mi210x2`) that specifies CPU, memory, and GPU resources. 2. **GPU Auto-Configuration**: If your preset includes multiple GPUs, environment variables (e.g. `CUDA_VISIBLE_DEVICES` or `HIP_VISIBLE_DEVICES`) are automatically set, along with a sensible default for parallelization. 3. **Ingress Setup**: Enable an ingress to expose vLLM’s HTTP endpoint for external access. 4. **Integration with Hugging Face**: You can pass your Hugging Face token via an environment variable to pull private models. *** ## Apolo Deployment #### Parameter Descriptions | **Resource Preset** | Required. Apolo preset for resources. E.g. **`gpu-xlarge`**, `H100X1`, `mi210x2`. Sets CPU, memory, GPU count, and GPU provider. | | ------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | **Hugging Face Model** | Required. Provide a Model Name in specified field. And Hugging Face token if model is gated. E.g. **`sentence-transformers/all-mpnet-base-v2`** | | **Enable HTTP Ingress** | Exposes an application externally over HTTPS | | **Hugging Face Tokenizer Name** | Name or path of the huggingface tokenizer to use. If unspecified, model name or path will be used. | | **Server Extra Args** | Optional. Specify additional args for llm. See | | **Cache Config** | Optional. Configure storage cache path, used to persist your model. Important for Autoscaling purposes. If not specified, PV will be created automatically and attached to the application. | | **Docker Image Config** | Optional. Configure vllm docker image and tag, If not specified the default one will be chosen. | Any additional chart values can also be provided through `--set` flags, but the above are the most common. *** ### Web Console UI Step1 - Select the Preset you want to use (Currently only GPU-accelerated presets are supported) Step2 - Select Model from [HuggingFace](https://huggingface.co/) repositories

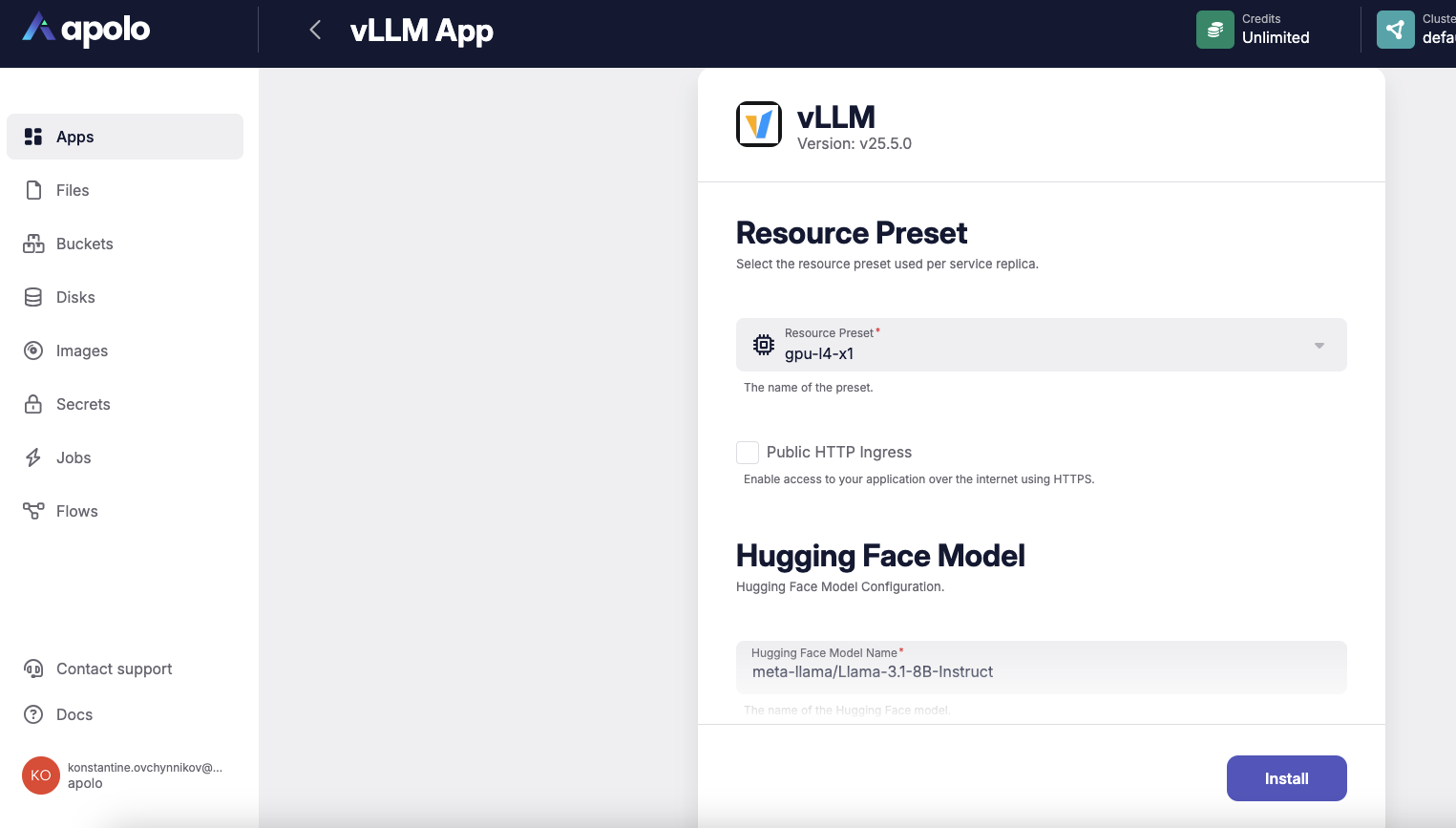

Part 1 - vLLM app deployment

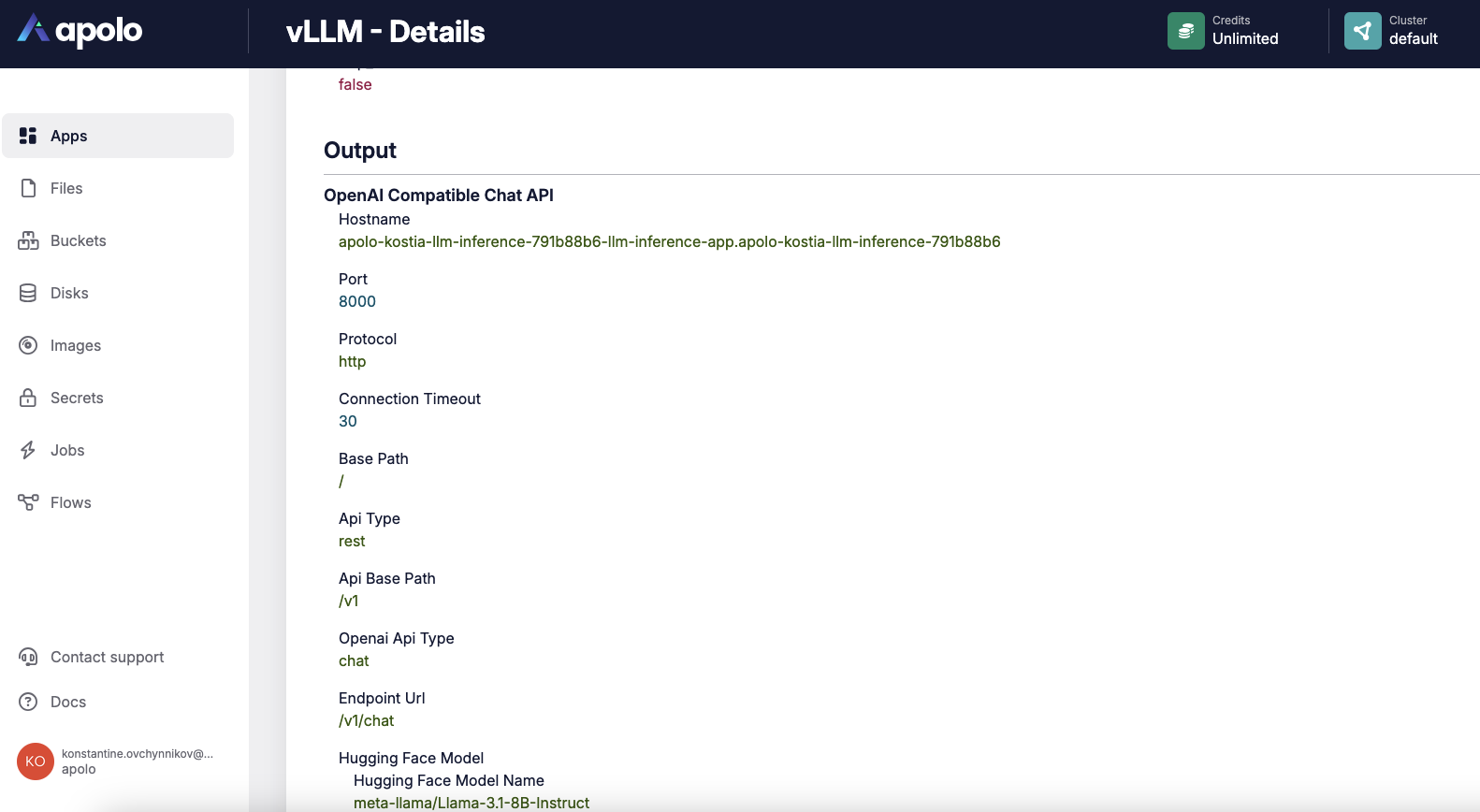

If Model is [gated](https://huggingface.co/docs/hub/en/models-gated), please provide the HuggingFace token, as a string of Apolo Secret. Step 3 - Install and wait for the application to be deployed. Once installed, you can find the API endpoint URL in the Outputs section of the app details page.

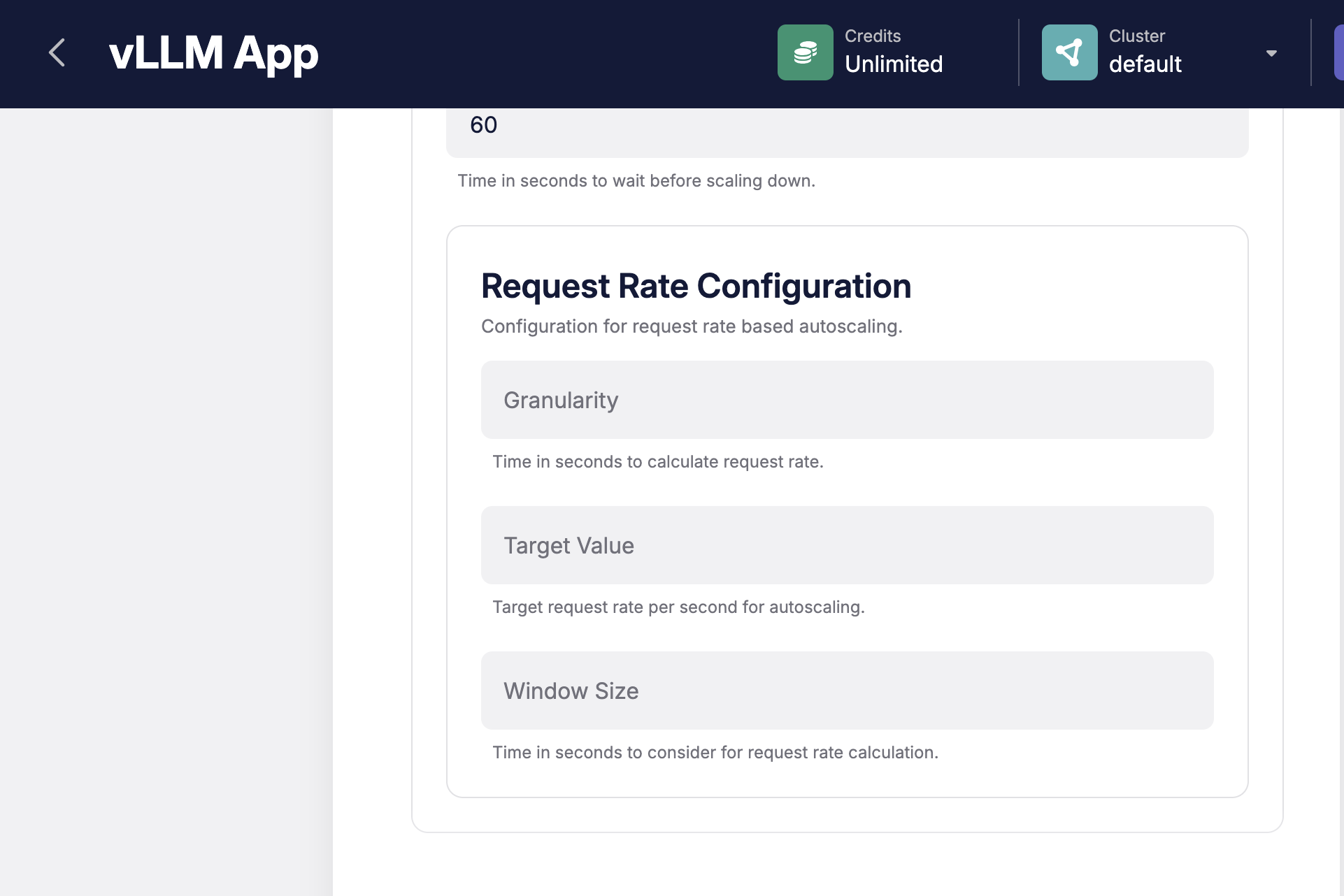

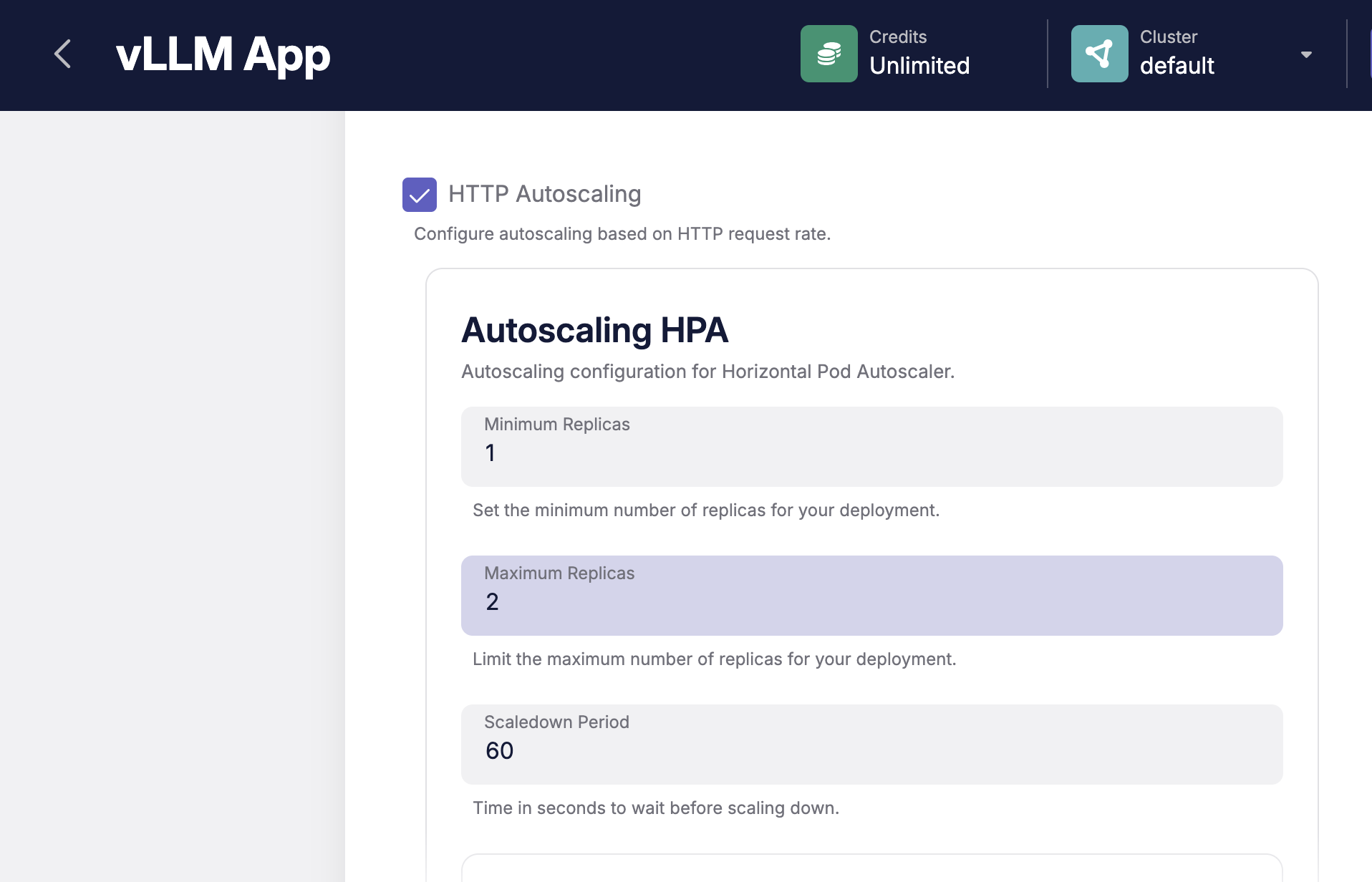

* `preset.name=gpu-l4-x1` requests 1 GPUs (AMD MI210). Apolo automatically sets `HIP_VISIBLE_DEVICES=0,1` , `ROCR_VISIBLE_DEVICES=0,1` and default parallelization flags unless overridden. * `model_hf_name: "meta-llama/Llama-3.1-8B-Instruct"`: The Hugging Face model to load. * `ingress_http`: Creates a public domain (e.g. `vllm-large.apps..org.neu.ro`) pointing to the vLLM deployment. ### Autoscaling You can configure an autoscaling for your vLLM deployment using Autoscaling Tab. vLLM supports autoscaling based on incoming HTTP request rate using [KEDA's HTTP Addon](https://github.com/kedacore/http-add-on). This enables dynamic scaling of your model deployment based on actual traffic load. Below are the key parameters you can configure for request rate-based autoscaling: {% tabs %} {% tab title="vLLM autoscaling parameters 1" %}
{% endtab %} {% tab title="vLLM autoscaling parameters 2" %}
{% endtab %} {% endtabs %} | Parameter | Description | | ---------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------- | | **Granularity** | Time interval (in seconds) used to calculate the request rate. A shorter interval reacts more quickly to traffic spikes, but may be more volatile. | | **Target Value** | Target number of requests per second per replica. KEDA will attempt to maintain this target by scaling up or down. | | **Window Size** | Total time window (in seconds) used for request rate calculation. Larger windows smooth out short-term spikes, but can introduce lag in scaling decisions. | ### Usage ```python import requests API_URL = "/v1/chat/completions" headers = { "Content-Type": "application/json", } data = { "model": "meta-llama/Llama-3.1-8B-Instruct", # Must match the model name loaded by vLLM "messages": [ { "role": "system", "content": "You are a helpful assistant that gives concise and clear answers.", }, { "role": "user", "content": ( "I'm preparing a presentation for non-technical stakeholders " "about the benefits and limitations of using large language models in our customer support workflows. " "Can you help me outline the key points I should include, with clear, jargon-free explanations and practical examples?" ), }, ] } if __name__ == '__main__': response = requests.post(API_URL, headers=headers, json=data) response.raise_for_status() reply = response.text status_code = response.status_code print("Assistant:", reply) print("Status Code:", status_code) ``` ### References * [vLLM Official GitHub Repo](https://github.com/vllm-project/vllm) * [vLLM application Helm Chart Repository](https://github.com/neuro-inc/app-llm-inference) * [Apolo Documentation](https://docs.apolo.us/apolo-cli/commands/shortcuts#usage-16) (for the usage of `apolo run` and resource presets) * [Hugging Face Model Hub](https://huggingface.co/) (for discovering or hosting models) * [Apolo Hugging Face application management](/index/apolo-console/apps/installable-apps/available-apps/hugging-face.md) * [vLLM inference install via CLI](/index/apolo-concepts-cli/apps/installable-apps/available-apps/vllm-inference.md) --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://docs.apolo.us/index/apolo-console/apps/installable-apps/available-apps/llm-inference.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
